Energy Levels for Electrons

Overview of Atomic Structure

• Nucleus: The compact core of an atom, comprising protons and neutrons.
• Electron Cloud: A region surrounding the nucleus where electrons move energetically in specific energy levels.
• Protons, Neutrons, Electrons: Fundamental particles determining the properties of elements.

Energy Levels, Shells, and Configurations

• Energy Levels: These are specific distances from the nucleus where electrons reside, vital for comprehending atomic structure.
• Electron Shells: Collections of orbitals that share similar energy levels.

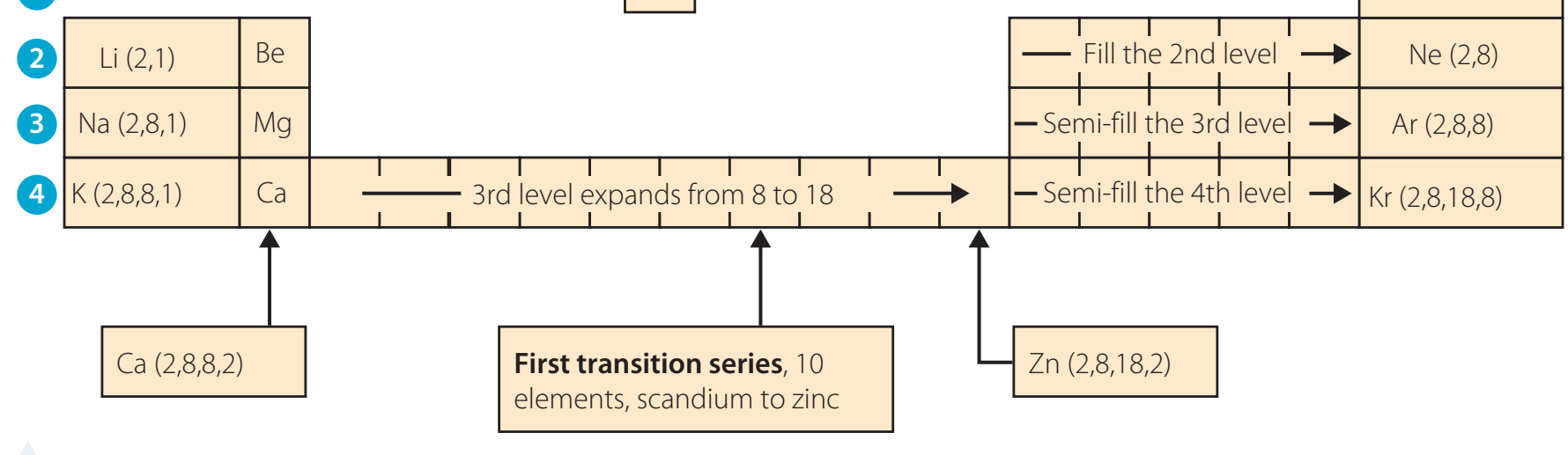

• Electron Configurations: The arrangement in which electrons fill orbitals, crucial for defining electronic configuration.

Quantised Energy Levels

• Electrons inhabit fixed energy levels, similar to standing on discrete steps of a ladder.
• Wave-Particle Duality: Electrons demonstrate both wave-like and particle-like properties, akin to light.

Differences in Energy Levels

• Neutral Atoms: Electrons occupy levels sequentially based on ascending energy.
• Ions: The gain or loss of electrons alters configurations and impacts characteristics.
  • Example: A sodium atom represented as $1s^2 \, 2s^2 \, 2p^6 \, 3s^1$, transitions to $\text{Na}^+$ with the configuration $1s^2 \, 2s^2 \, 2p^6$.

Atomic Orbitals and Subshells

• Orbital Definition: Areas with the highest probability of locating electrons.
• Subshells:
  • s: Accommodates up to 2 electrons.
  • p: Accommodates up to 6 electrons.
  • d: Accommodates up to 10 electrons.
  • f: Accommodates up to 14 electrons.
• Electrons fill these subshells beginning with the lowest energy level.

Flame Tests Principle

• Flame Tests: Utilised to identify metals by the colour emitted from flame due to electronic transitions.
• Electron Transitions: Electrons absorb energy to move higher and release specific flame colours upon returning to lower levels.

Materials and Procedure

Materials:

• • Metal Salts: Sodium chloride, copper sulphate.
  • Bunsen Burner, Nichrome Wire Loop, Hydrochloric Acid.

Safety Equipment:

• Safety Goggles, Lab Coat, Heat-resistant Gloves.
• Safety Guidelines:
  • Employ protective clothing to mitigate exposure to hazardous substances.

---

Procedure:

1. Clean the nichrome wire with hydrochloric acid.
2. Dip it into the metal salt.
3. Place it in the flame, Observe and record the colour observed.

• Cleaning Protocol: Meticulously clean the wire loop between tests to ensure accuracy.

Observations and Recording

• Observation Template:
  • Metal Ion, Observed Flame Colour, Observational Notes, Potential Errors.

Spectroscope and Emission Spectra

• Spectroscope: Complements flame tests by delivering precise spectral lines.
• Emission Spectra: Unique to each element, ensuring precise identification.

Multiple-Choice Questions

• Objective: Evaluate understanding of flame colour recognition and electron transitions.
  • Sodium displays a yellow flame colour.
  • Identify the green/blue emission of copper ions.

Solution: Sodium compounds produce a bright yellow flame due to electron transitions in sodium atoms. Copper compounds produce a green-blue flame colour depending on the specific copper salt used.

Calculation Exercises

• Objective: Determine energy levels using the Bohr model.
  • Exercise: Compute the energy level difference for a sodium ion at a wavelength of 589 nm.

Solution: The energy of a photon is given by $E = h\nu = \frac{hc}{\lambda}$

Where:

• $h$ is Planck's constant ($6.626 \times 10^{-34}$ J·s)
• $c$ is the speed of light ($3 \times 10^8$ m/s)
• $\lambda$ is the wavelength (589 nm = $589 \times 10^{-9}$ m)

$E = \frac{6.626 \times 10^{-34} \times 3 \times 10^8}{589 \times 10^{-9}}$ $E = \frac{1.988 \times 10^{-25}}{589 \times 10^{-9}}$ $E = 3.38 \times 10^{-19}$ J

This is the energy difference between the energy levels involved in the transition that produces the yellow sodium flame.

Experimental and Theoretical Comparisons

• Analysing Quantum Mechanics in contrast to the Bohr Model, focusing on wave-particle duality and probability zones.

---

Summary

This document provides a detailed examination of atomic structure, emphasising energy levels, electron configurations, flame tests, and the role of spectroscopy in studying electron behaviour. Proficiency in these concepts is crucial for predicting chemical properties and conducting laboratory experiments effectively.
